Website Integration

Add cross-reference search to your website in 4 steps.

Wizerr App

1 Get your publishable API key

Go to Settings → API Access. Copy the key shown under PUBLISHABLE KEY.

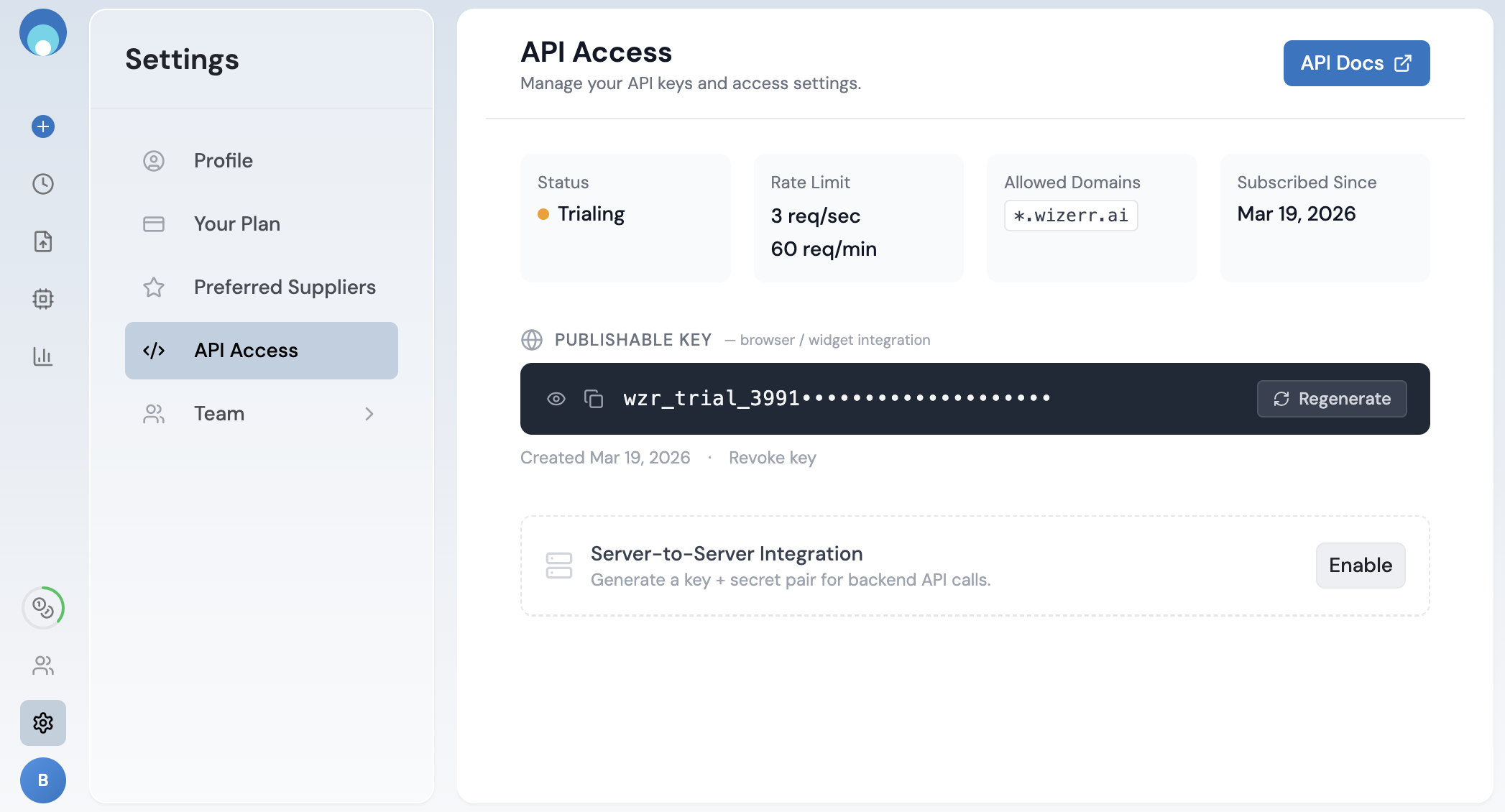

Dashboard - API Access page with publishable key

Your publishable key is in the API Access section of Settings.

2 Set your preferred suppliers

Go to Settings → Preferred Suppliers. Search for a manufacturer and click + to add it.

The SDK will only return cross-reference results from suppliers on this list. Make sure you add every manufacturer you want to see in your results.

Add the manufacturers you source from under Preferred Suppliers.

Your Website

3 Add the SDK and initialize

Include the script tag in your HTML (no bundler needed), then create a client with your publishable key from step 1.

<script src="https://app.wizerr.ai/wizerr-sdk.js"></script>
<script>
  const client = new WizerrXref({
    apiKey: 'wzr_live_pk_abc123',
  });
</script>

4 Run a search

Pass a part number to client.search(). Each call uses 1 credit. Results from your preferred suppliers (step 2) are ranked first automatically.

const res = await client.search('LM358');
console.log(res.data.results);

Response format

The response is a JSON object with two root fields:

`input_part_details` object

Metadata about the part you searched for.

Field	Type	Description
`part_number`	string	The part number you submitted
`manufacturer`	string	Detected manufacturer of the input part
`variant_part_number`	string \| null	When your exact part number is not in our database, we use a closely related variant to produce the results. Contains that variant's part number. `null` when results are for your exact input.

`results` array

Cross-reference matches. Each result has a type indicating the search tier:

wizerr-deep-search Best matches — high-confidence drop-in replacements with a compatibility score.
wizerr-expanded-search Additional alternates — functionally similar parts from a broader search.

Field	Type	Description
`part_number`	string	Cross-reference part number
`manufacturer`	string	Manufacturer name
`description`	string	Part description
`match_type`	string	`"DROP-IN"` or `"ALTERNATE"`
`match_score`	number	Compatibility score (present on deep-search results)
`preferred_supplier`	boolean	`true` if the manufacturer is on your preferred list
`type`	string	`"wizerr-deep-search"` or `"wizerr-expanded-search"`

Example

{
  "input_part_details": {
    "part_number": "TPS24701DGK",
    "manufacturer": "Texas Instruments",
    "variant_part_number": null
  },
  "results": [
    {
      "part_number": "IS31BL3212-DLS2-TR",
      "manufacturer": "Lumissil Microsystems",
      "description": "IC LED DRIVER LINEAR 23MA 8DFN",
      "match_type": "DROP-IN",
      "match_score": 0.96,
      "preferred_supplier": true,
      "type": "wizerr-deep-search"
    },
    {
      "part_number": "LTC4211CMS8#PBF",
      "manufacturer": "Analog Devices Inc.",
      "description": "IC HOT SWAP CTRLR GP 8MSOP",
      "match_type": "ALTERNATE",
      "preferred_supplier": true,
      "type": "wizerr-expanded-search"
    }
  ]
}

Full copy-paste example

A minimal working page. Replace the API key with yours.

<!DOCTYPE html>
<html>
<head><title>Xref Search</title></head>
<body>
  <input id="pn" placeholder="Part number" />
  <button id="btn">Search</button>
  <pre id="out"></pre>

  <script src="https://app.wizerr.ai/wizerr-sdk.js"></script>
  <script>
    const client = new WizerrXref({
      apiKey: 'wzr_live_pk_abc123',
    });

    document.getElementById('btn').onclick = async () => {
      const pn = document.getElementById('pn').value;
      try {
        const res = await client.search(pn);
        document.getElementById('out').textContent =
          JSON.stringify(res.data.results, null, 2);
      } catch (err) {
        document.getElementById('out').textContent = err.message;
      }
    };
  </script>
</body>
</html>

SDK options

Option	Default	Description
`apiKey`	-	Your publishable key (required)
`maxRetries`	`0`	Auto-retry when the rate limit is reached (3 req/sec, 60 req/min). The SDK waits and resends the request automatically. Set to `2`-`3` for production use.

Your publishable key is locked to your account's email domain. The API will reject requests from any website outside that domain.
