Server-to-Server (REST API)

Call the Xref API from your backend in 4 steps.

Wizerr App

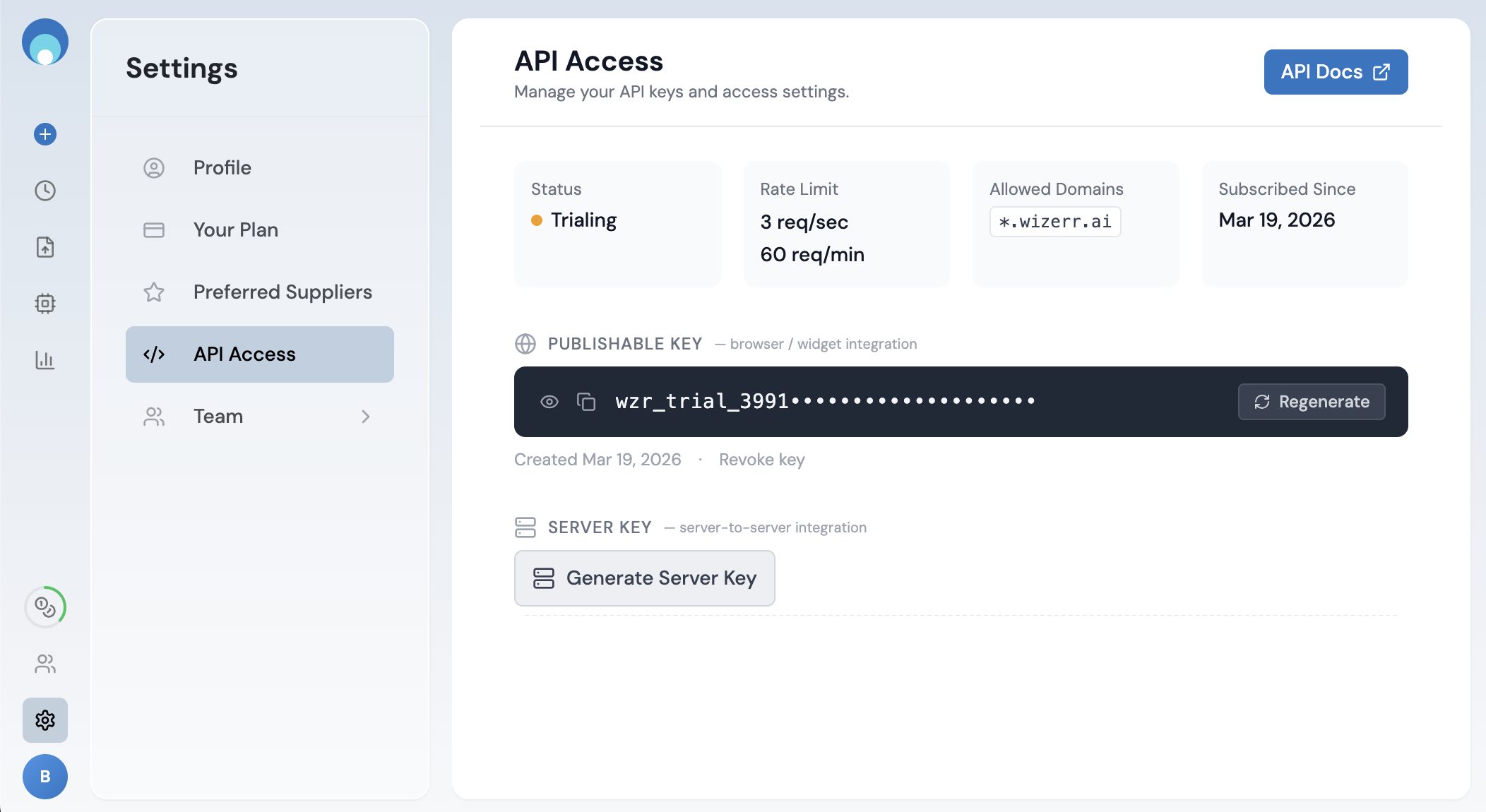

1 Generate your server key

Go to Settings → API Access. Click Generate Server Key under the Server Key section.

Click "Generate Server Key" to create your S2S key pair.

2 Save your credentials

A dialog shows your API Key and API Secret. The secret is shown only once. Copy it now or download the .txt file.

Copy both values. The secret cannot be retrieved later.

Never expose the API secret in client-side code, public repos, or mobile apps. Store it in an environment variable or secret manager.

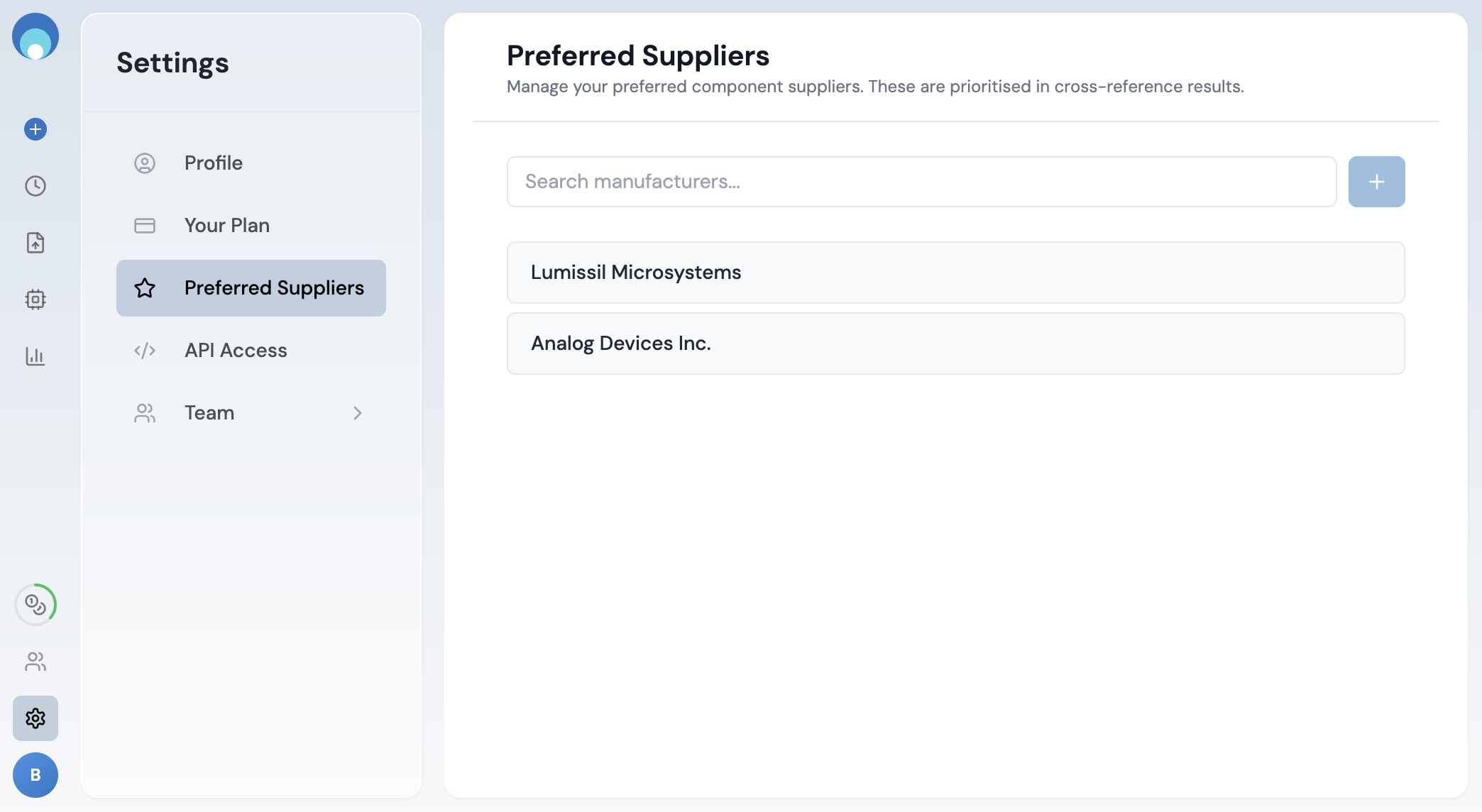

3 Set your preferred suppliers

Go to Settings → Preferred Suppliers. Search for a manufacturer and click + to add it.

The API will only return cross-reference results from suppliers on this list. Make sure you add every manufacturer you want to see in your results.

Add the manufacturers you source from under Preferred Suppliers.

Your Server

4 Make a search request

Send a POST to https://api.wizerr.ai/v1/xref with your credentials and a part number. Each call uses 1 credit.

Required headers

Header	Value
`x-api-key`	Your server API key
`x-api-secret`	Your server API secret
`Content-Type`	`application/json`

Request body

Field	Type	Required	Description
`part_number`	string	Yes	Part number to search

Examples

cURL

Node.js

Python

curl -X POST "https://api.wizerr.ai/v1/xref" \
  -H "Content-Type: application/json" \
  -H "x-api-key: $WIZERR_API_KEY" \
  -H "x-api-secret: $WIZERR_API_SECRET" \
  -d '{ "part_number": "LM358" }'

const res = await fetch('https://api.wizerr.ai/v1/xref', {
  method: 'POST',
  headers: {
    'Content-Type': 'application/json',
    'x-api-key': process.env.WIZERR_API_KEY,
    'x-api-secret': process.env.WIZERR_API_SECRET,
  },
  body: JSON.stringify({ part_number: 'LM358' }),
});

const data = await res.json();
console.log(data.results);

import requests

resp = requests.post(
    "https://api.wizerr.ai/v1/xref",
    headers={
        "x-api-key": WIZERR_API_KEY,
        "x-api-secret": WIZERR_API_SECRET,
    },
    json={ "part_number": "LM358" },
)

data = resp.json()
print(data["results"])

Response format

The response is a JSON object with two root fields:

`input_part_details` object

Metadata about the part you searched for.

Field	Type	Description
`part_number`	string	The part number you submitted
`manufacturer`	string	Detected manufacturer of the input part
`variant_part_number`	string \| null	When your exact part number is not in our database, we use a closely related variant to produce the results. Contains that variant's part number. `null` when results are for your exact input.

`results` array

Cross-reference matches. Each result has a type indicating the search tier:

wizerr-deep-search Best matches — high-confidence drop-in replacements with a compatibility score.
wizerr-expanded-search Additional alternates — functionally similar parts from a broader search.

Field	Type	Description
`part_number`	string	Cross-reference part number
`manufacturer`	string	Manufacturer name
`description`	string	Part description
`match_type`	string	`"DROP-IN"` or `"ALTERNATE"`
`match_score`	number	Compatibility score (present on deep-search results)
`preferred_supplier`	boolean	`true` if the manufacturer is on your preferred list
`type`	string	`"wizerr-deep-search"` or `"wizerr-expanded-search"`

Example

{
  "input_part_details": {
    "part_number": "TPS24701DGK",
    "manufacturer": "Texas Instruments",
    "variant_part_number": null
  },
  "results": [
    {
      "part_number": "IS31BL3212-DLS2-TR",
      "manufacturer": "Lumissil Microsystems",
      "description": "IC LED DRIVER LINEAR 23MA 8DFN",
      "match_type": "DROP-IN",
      "match_score": 0.96,
      "preferred_supplier": true,
      "type": "wizerr-deep-search"
    },
    {
      "part_number": "LTC4211CMS8#PBF",
      "manufacturer": "Analog Devices Inc.",
      "description": "IC HOT SWAP CTRLR GP 8MSOP",
      "match_type": "ALTERNATE",
      "preferred_supplier": true,
      "type": "wizerr-expanded-search"
    }
  ]
}

Error responses

Errors return JSON with an error code and message.

Status	Error	Meaning
400	`invalid_input`	Missing or invalid `part_number`
401	`missing_api_key`	No `x-api-key` header
401	`invalid_api_key`	Key not found
401	`missing_api_secret`	Missing `x-api-secret` header
401	`invalid_api_secret`	Wrong secret
402	`insufficient_credits`	No credits remaining
429	`rate_limit_exceeded`	Too many requests - see Rate limits
504	`request_timeout`	Search exceeded timeout
